Aramid honeycomb paper L143
Dense structure, smooth surface, with high fatigue resistance, high temperature resistance, and chemical corrosion resistance.
- Product Description
- Specifications
- Application Cases
-
- Commodity name: Aramid honeycomb paper L143
- Commodity ID: 304
Dense structure, smooth surface, with high fatigue resistance, high temperature resistance, and chemical corrosion resistance.
Product Features:
1、 Using 1414 fiber and 1313 honeycomb paper made from a mixture of fibers and calendered ；
2、Dense structure, smooth surface, with relatively high tensile strength and tear strength
3、Good flame retardant properties, little smoke and no dripping during combustion, self-extinguishing after leaving the fire
4、High fatigue resistance, high temperature resistance, and chemical corrosion resistance
Key words:- Aramid honeycomb paper
-
Product Performance Parameters:
Thickness (mm) 0.05
Basis weight (g/ ㎡ ) 40 Tensile strength (KN/m) Machine direction (MD) ≥2.8 Cross direction (TD) ≥1.5 Elongation at break ( % ) Machine direction (MD) ≥1.4 Cross direction (TD) ≥1.0 Tear strength (N) Machine direction (MD) ≥0.7 Cross direction (TD) ≥0.8 -

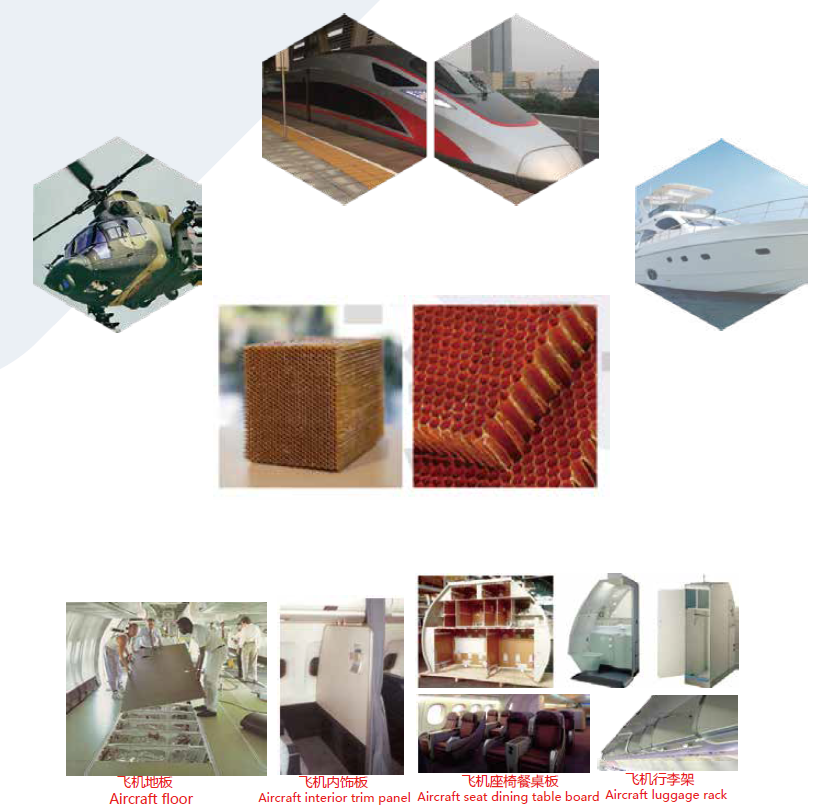

Main applications of aramid honeycomb paper:
1、 Used to manufacture high specific strength honeycomb boards, applied to aerospace, rail transit, yachts and ships, building materials and other large rigid, secondary load-bearing parts.
