Pure aramid paper
Features:
1. The structure is dense and the surface is smooth. Compared with the laminated aramid paper of the same thickness, it has higher tensile strength and tear strength.
2. It has excellent high temperature resistance, can be used at a high temperature of 210 °C for a long time (above H level), and has passed the UL relative temperature index (RTI) certification
3. It has excellent flame retardant performance, less smoke and no droplet during combustion, and self extinguishing when take it way from fire.
L633A product performance parameters:
| Nominal Thickness | mm | 0.05 | 0.08 | 0.13 | 0.18 | 0.25 | 0.30 | 0.38 | 0.51 | 0.76 | Standard Test | |
| mil | 2 | 3 | 5 | 7 | 10 | 12 | 15 | 20 | 30 | |||
| Typical Thickness | mm | 0.061 | 0.081 | 0.132 | 0.186 | 0.243 | 0.285 | 0.375 | 0.501 | 0.800 | GB/T451.3-2002 | |
| Quantitative | g/㎡ | 41 | 64 | 118 | 174 | 226 | 285 | 393 | 506 | 824 | GB/T451.2-2002 | |
| Density | g/m³ | 0.80 | 0.79 | 0.89 | 0.94 | 0.98 | 1.00 | 1.05 | 1.01 | 1.05 | / | |
| Tensile Strength | Longitudinal MD | N/cm | 26 | 40 | 88 | 110 | 200 | 250 | 320 | 520 | ＞600 | GB/T12914-2008 |
| Lateral TD | 20 | 35 | 80 | 100 | 180 | 230 | 300 | 500 | ＞600 | |||
| Elongation | Longitudinal MD | % | 7.4 | 7.5 | 8.8 | 9.0 | 13.0 | 16.0 | 16.0 | 20.0 | N/A | GB/T12914-2008 |
| Lateral TD | 7.2 | 7.8 | 8.2 | 8.0 | 11.0 | 15.0 | 15.0 | 18.0 | N/A | |||
| Tear Strength | Longitudinal MD | N | 1.2 | 2.0 | 2.8 | 3.8 | 5.2 | 6.8 | 12.6 | ＞16.0 | ＞16.0 | GB/TN12914-2002 |
| Lateral TD | 1.2 | 2.0 | 3.0 | 3.8 | 6.0 | 7.0 | 12.3 | ＞16.0 | ＞16.0 | |||
| Dielectric Strength | kv/mm | 16 | 18 | 22 | 24 | 28 | 28 | 30 | 33 | 33 | GB/T1408.1-2006 | |
L233A product performance parameters:
| Nominal Thickness | mm | 0.04 | 0.05 | 0.08 | 0.13 | 0.15 | 0.18 | 0.25 | 0.30 | 0.38 | 0.51 | Standard Test |
| mil | 1.5 | 2 | 3 | 5 | 6 | 7 | 10 | 12 | 15 | 20 | ||
| Thickness | mm | 0.038 | 0.052 | 0.082 | 0.133 | 0.154 | 0.178 | 0.247 | 0.306 | 0.393 | 0.553 | GB/T451.3-2002 |
| Quantitative | g/㎡ | 25 | 33.5 | 62.4 | 115 | 137 | 171 | 235 | 291 | 360 | 560 | GB/T451.2-2002 |
| Density | g/m³ | 0.66 | 0.64 | 0.76 | 0.86 | 0.89 | 0.96 | 0.95 | 0.95 | 0.92 | 1.01 | / |
| Tensile Strength | Longitudinal MD | 16 | 35 | 55 | 100 | 110 | 119 | 170 | 250 | 280 | 530 | GB/T12914-2008 |
| Lateral TD | 5 | 10 | 22 | 95 | 100 | 114 | 140 | 220 | 260 | 520 | ||
| Elongation | Longitudinal MD | 4.1 | 6.5 | 7.5 | 11.0 | 11.0 | 14.0 | 12.0 | 14.0 | 11.0 | 21.0 | GB/T12914-2008 |
| Lateral TD | 3.0 | 3.0 | 4.5 | 13.0 | 10.0 | 13.0 | 13.0 | 14.0 | 12.0 | 22.0 | ||
| Tear Strength | Longitudinal MD | 0.45 | 0.45 | 0.7 | 2.0 | 2.5 | 6.3 | 7.3 | 9.5 | 15.0 | ＞16.0 | GB/TN12914-2002 |
| Lateral TD | 0.5 | 0.4 | 0.7 | 2.1 | 2.5 | 6.5 | 8.3 | 10.4 | ＞16.0 | ＞16.0 | ||
| Dielectric Strength | kv/mm | 12 | 12 | 11 | 9.8 | 10.1 | 23.6 | 28.2 | 28.7 | 21.9 | 23.3 | GB/T1408.1-2006 |
Aramid insulating paper product application:

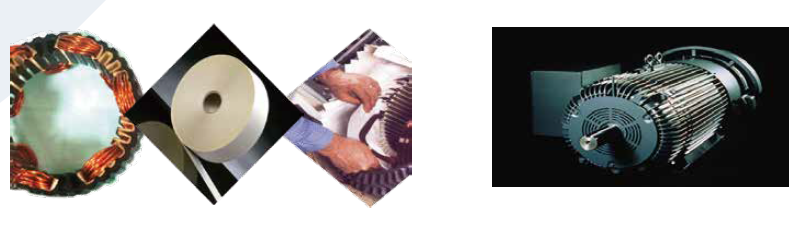

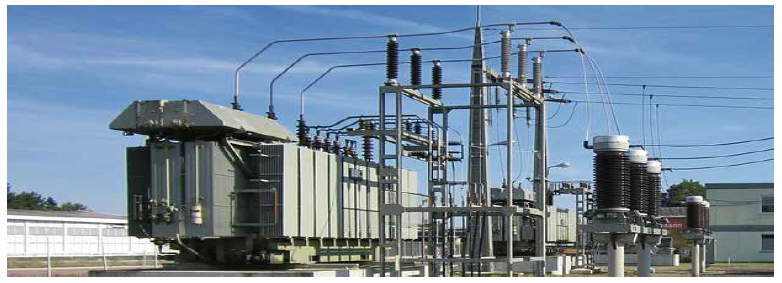

1. Insulating materials for coils, windings, insulating sleeves, components, wires and joints in transformers
2. Insulation materials for coils, windings, slots, phases, turns, and line terminals in motors and generators
3. Cable and wire insulation, nuclear power equipment insulation and other fields
